Quick Spec Check

Industry Type: G-Drive, Industrial
Engine Series: D Series
Engine Speed: 3000 rpm, 3200 rpm, 3600 rpm
Power kW: 7.5
Max Torque: 24.8 @ 2000rpm
Emissions: EU STAGE V

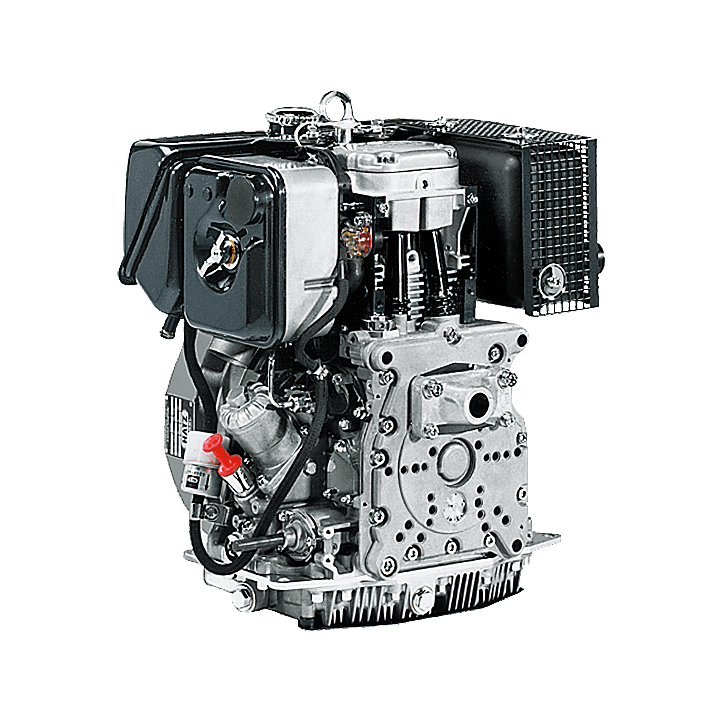

Hatz 1D50 Single Cylinder Engine

Hatz 1D50 Diesel Engine

Hatz 1D50 is a compact single-cylinder, air-cooled 4‑stroke diesel engine delivering up to 7.5 kW (10.1 hp) at 3000 rpm. It’s a strong fit for industrial equipment that needs dependable diesel power with simple packaging and straightforward servicing.
Get a Quote for this Engine
The Hatz 1D50 is designed for demanding industrial applications where reliability and service access matter as much as performance. Its air-cooled layout keeps installation simple by removing the need for a liquid-cooling system, making it well suited to compact machinery and equipment that operates in harsh environments.
It delivers up to 7.5 kW (10.1 hp) at 3000 rpm, with usable output across working speeds including 7.2 kW (9.7 hp) at 2800 rpm and 6.8 kW (9.1 hp) at 2600 rpm. For lower-speed operation, it also supports 6.0 kW (8.0 hp) at 2300 rpm and 5.2 kW (7.0 hp) at 2000 rpm, helping you match the engine to real operating conditions rather than quoting only peak rpm.
For governed-speed duties, the 1D50 supports 3000 rpm constant speed, and it can also be selected for 1800 rpm and 1500 rpm applications where stable output is required.
Engine Details
Information on the main core details of the engine
Engine Series

D Series
Industry Type

G-Drive, Industrial
Engine Perfomance
Engine Speed

3000 rpm, 3200 rpm, 3600 rpm
Power kW

7.5
Max Torque Nm

24.8 @ 2000rpm
Emissions Compliant
Emissions

EU STAGE V
Design Features
SAE Connection

Options Available
Radiator

No
Fan

No
Technical Features
Aspiration

Natural
Cylinders

1
Injection System

DI
Injection Equipment

Mechanical
EGR

No
DOC

No
DPF

No
CAC

No
Physical Characteristics
Engine Length

357mm
Engine Width

432mm
Engine Height

512mm
Engine Weight

83kg (Dry)

Technical Documents

Hatz Technical Information

Parts & Warranty

PROTECT YOUR INVESTMENT

Keep your engine running right

Troubleshoot issues, stay on top of maintenance, buy replacement parts, and get warranty information

Parts List

[woosg]

Applications

The Hatz 1D50 is a strong choice for compact equipment needing reliable single-cylinder diesel power with straightforward installation and service access.
Typical applications include:
  • Pumps and packaged pumping systems
  • Compressors and air equipment
  • Construction and utility equipment
  • Agricultural and land-management machinery
  • Hydraulic power packs
  • Industrial OEM machinery and power units
